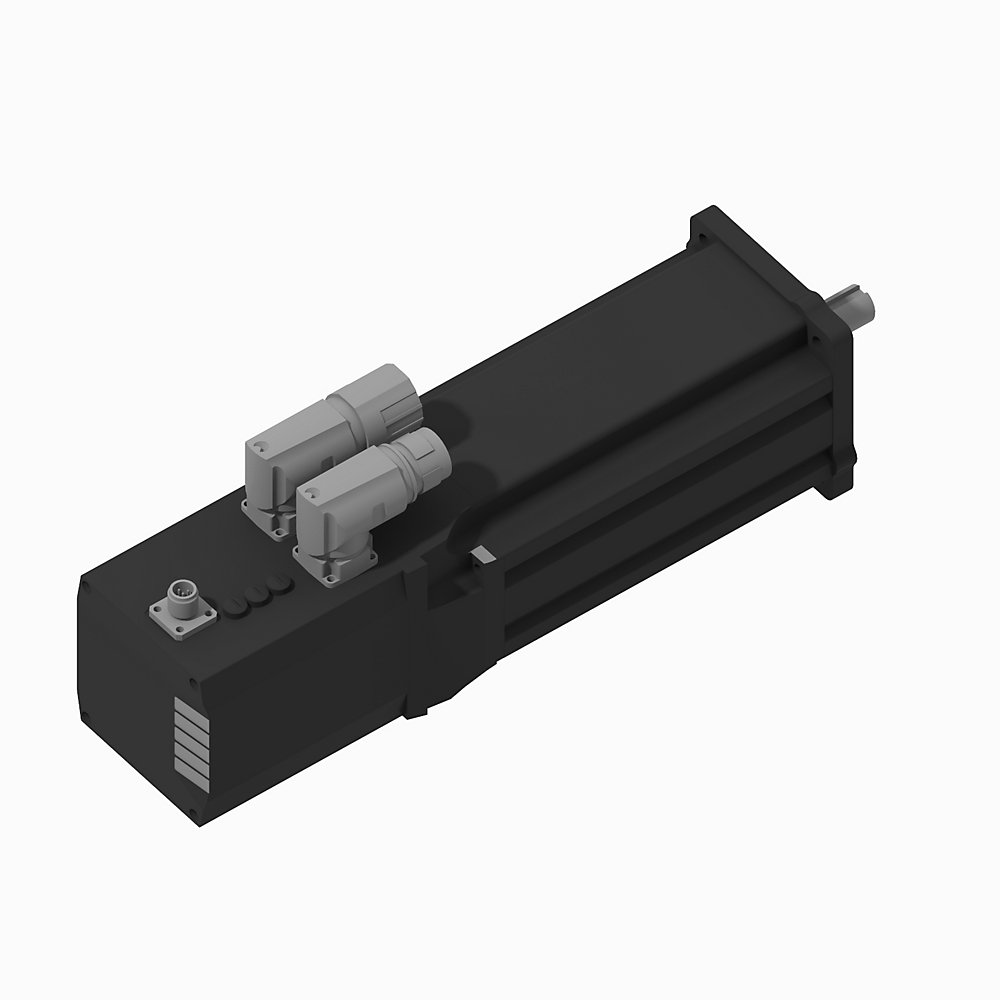

Allen-Bradley 2198-DSM024-ERS5-B1003T-TJ14AS ArmorKinetix Servo Drive
ArmorKinetix distributed servo drive, 24 Amp peak, 24 V DC holding brake, 400 V class, 35 m cable, Advanced Safety
Lifecycle Status: Active
The Allen-Bradley 2198-DSM024-ERS5-B1003T-TJ14AS ArmorKinetix distributed servo drive is designed for machine control and motion applications that require decentralized servo architecture with integrated safety features and on-machine installation.
Lifecycle Status: Active
- ArmorKinetix distributed servo drive
- 24 Amp peak rating
- 400 V class
- 24 V DC holding brake
- 35 m cable specification
- Advanced Safety version
- 100 mm bolt circle frame size
- 3 stacks
- 6750 designation
- DSL feedback
- SIL2 safety capability
- Multi-turn configuration
- SpeedTec right-angle DIN connection
- IEC metric mounting flange
- IP66 shaft seal fitted
This ArmorKinetix distributed servo drive is suited for distributed motion systems where reduced cabinet wiring, machine-mounted drive topology, and coordinated servo control are important in packaging, material handling, and automated production equipment.
Its distributed design supports compact machine layouts and can be applied in control architectures that benefit from servo performance, safety integration, and rugged installation closer to the axis.
