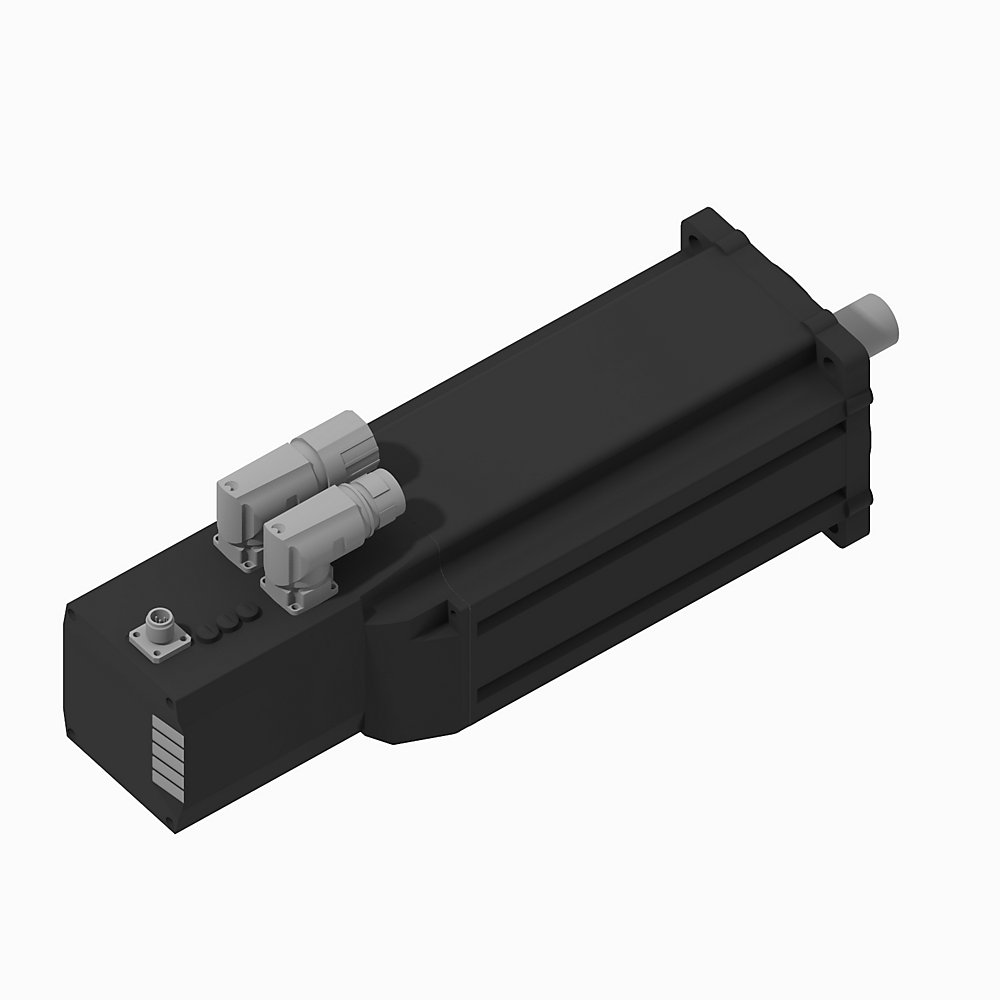

Allen-Bradley 2198-DSM024-ERS2-B1304E-PJ12AA ArmorKinetix Servo Motor
ArmorKinetix distributed servo motor, 24 A peak, Standard Safety, 400V class, 130 mm bolt circle frame, 4 stacks, 3500 RPM, multi-turn DSL feedback, 24V DC holding brake
Lifecycle Status: Unknown
The Allen-Bradley 2198-DSM024-ERS2-B1304E-PJ12AA ArmorKinetix distributed servo motor is designed for integrated motion applications that place drive and motor functions close to the machine axis. This configuration supports compact machine architecture, distributed motion control, and EtherNet/IP-based automation systems using ArmorKinetix drive technology.
Lifecycle Status: Unknown
- ArmorKinetix distributed servo motor
- 24 A peak output class
- Standard Safety version
- 400V class
- 130 mm bolt circle frame size
- 4 stack length
- 3500 RPM base speed
- Multi-turn DSL EK 35 mm feedback
- Smooth shaft extension
- SpeedTec right-angle DIN connectors
- 24V DC holding brake
- IEC metric mounting flange
- Standard seal configuration
This servo motor is suited to machine control applications requiring distributed axis deployment, reduced cabinet wiring, and coordinated motion in packaging, material handling, and automated production equipment. The distributed design can help simplify installation where machine-mounted motion hardware is preferred over centralized cabinet-mounted servo architectures.
