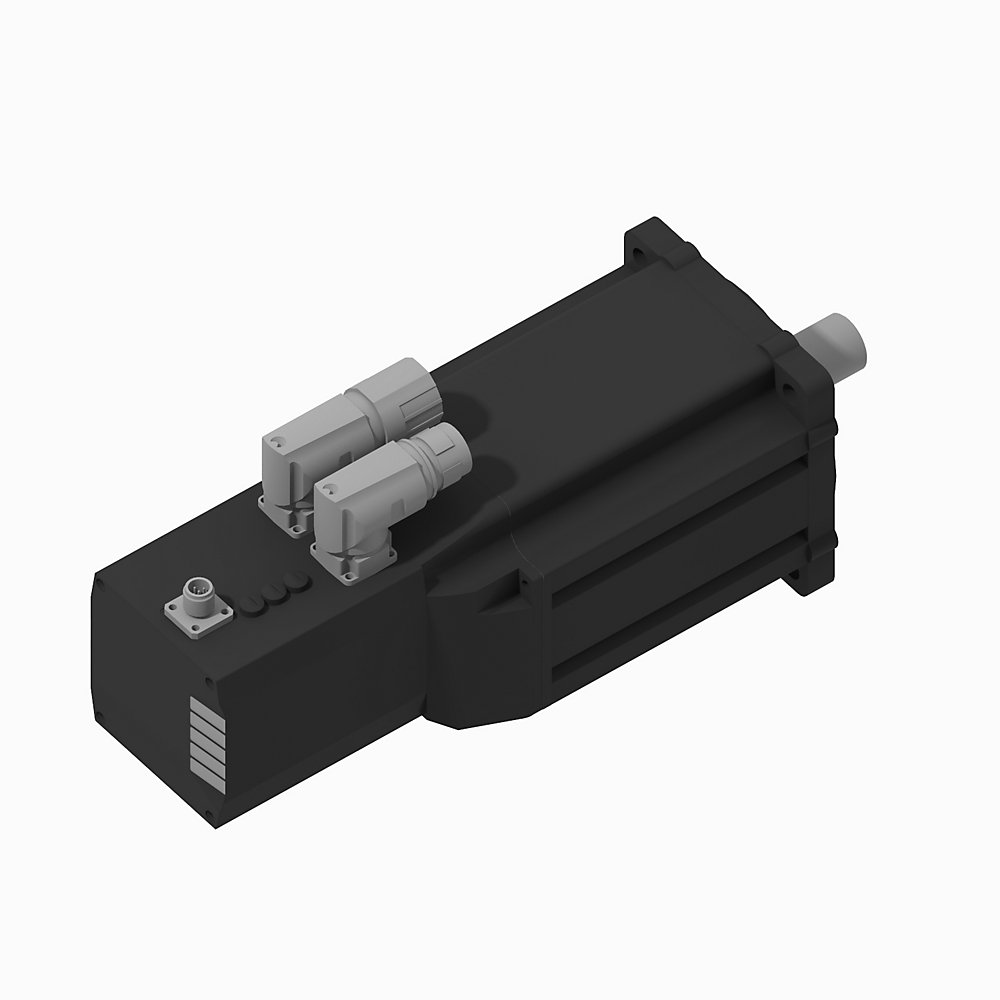

Allen-Bradley 2198-DSM024-ERS2-B1303F-PK12AS ArmorKinetix Servo Drive
ArmorKinetix distributed servo drive, 24 A peak, 400 V class, 130 mm bolt circle frame, 35 mm, standard safety
Lifecycle Status: Active
The Allen-Bradley 2198-DSM024-ERS2-B1303F-PK12AS ArmorKinetix distributed servo drive is designed for machine architectures that place servo control closer to the motor and machine axis. This ArmorKinetix distributed servo drive supports 400 V class applications and is suited to motion systems requiring a compact distributed drive package with integrated machine-level installation.
Lifecycle Status: Active
- Product family: ArmorKinetix distributed servo drive
- Catalog number: 2198-DSM024-ERS2-B1303F-PK12AS
- Peak current: 24 A
- Voltage class: 400 V
- Frame size: 130 mm bolt circle
- Mechanical size: 35 mm
- Safety option: Standard safety
- Configuration details from product data: 3 stacks, multi-turn DSL, SpeedTec right angle DIN, no brake, IEC metric mounting flange, IP66 shaft seal fitted
- Typical use: distributed servo motion control for packaging, material handling, and machine automation systems
This Allen-Bradley ArmorKinetix distributed servo drive can be applied in servo-based machine control systems where reduced cabinet wiring, distributed installation, and coordinated motion architecture are important design considerations.
