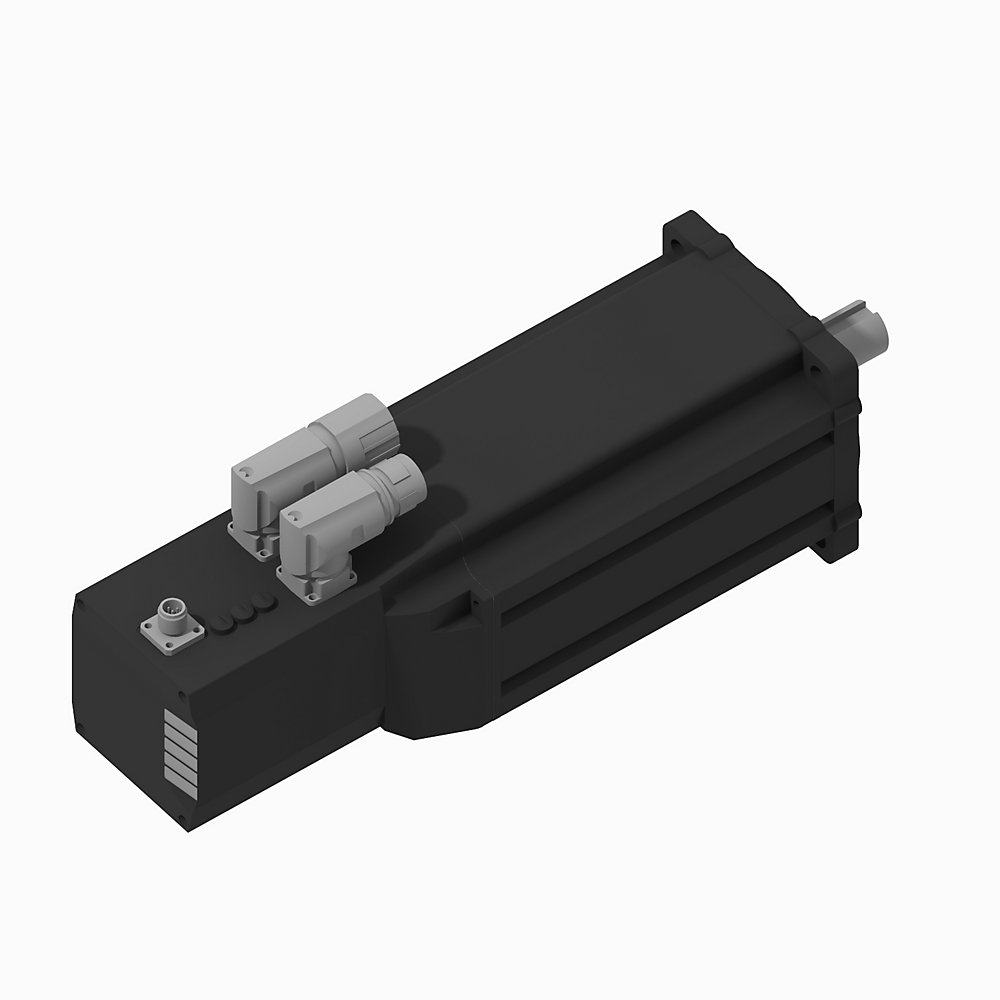

Allen-Bradley 2198-DSM024-ERS2-B1303F-PJ12AS ArmorKinetix Servo Motor
ArmorKinetix distributed servo motor, 24A peak, Standard Safety, 400V Class, 130 mm bolt circle frame, 3 stacks, 4500 RPM, Multi-turn DSL EK 35 mm, keyed shaft, 24VDC holding brake, IEC metric flange, standard seal
Lifecycle Status: Unknown
The Allen-Bradley 2198-DSM024-ERS2-B1303F-PJ12AS ArmorKinetix distributed servo motor is an on-machine motion component for distributed machine architectures that combine servo performance with simplified cabling and EtherNet/IP-based motion system design.
Lifecycle Status: Unknown
- Product family: ArmorKinetix distributed servo motor
- Peak current class: 24A peak
- Safety level: Standard Safety
- Input voltage class: 400V Class
- Frame size: 130 mm bolt circle frame size
- Stack length: 3 stacks
- Base speed: 4500 RPM
- Feedback type: Multi-turn DSL EK 35 mm
- Shaft extension: Keyed shaft extension
- Connector style: PJ12AS variant not confirmed in official structured source; keyed shaft and brake configuration align with official ArmorKinetix B1303F product data
- Brake: 24VDC holding brake
- Mounting configuration: IEC metric mounting flange
- Special features: Standard seal
This ArmorKinetix distributed servo motor is suited to machine control applications that benefit from near-motor installation, reduced cabinet wiring, and integrated motion architectures. Typical use cases include packaging, material handling, and automated production equipment where compact distributed servo deployment is required.
