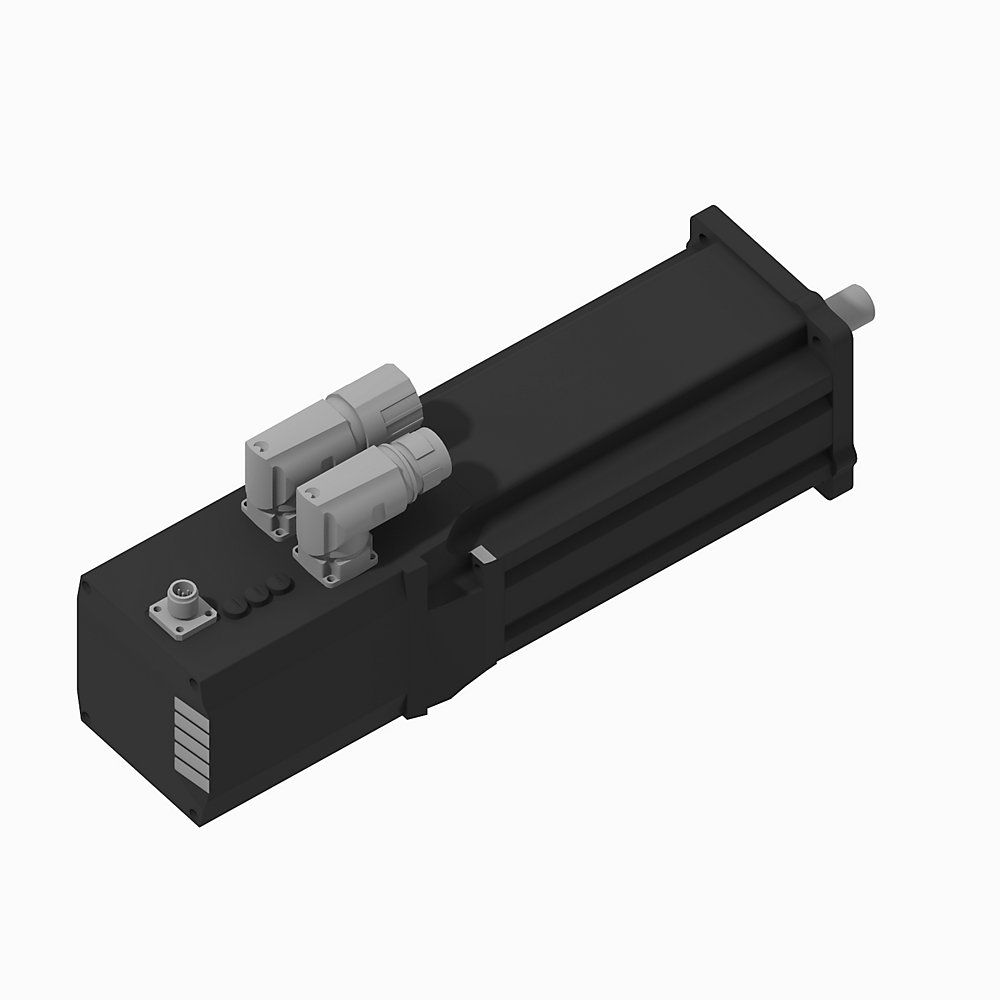

Allen-Bradley 2198-DSM024-ERS2-B1003F-PK14AA ArmorKinetix Servo Motor
ArmorKinetix distributed servo motor, 24 A peak, 400V class, 100 mm bolt circle frame, 3 stacks, 4500 RPM, multi-turn DSL EK 35 mm feedback, smooth shaft, SpeedTec right-angle DIN, 24V DC holding brake, IEC metric flange, standard seal
Lifecycle Status: Active
The Allen-Bradley 2198-DSM024-ERS2-B1003F-PK14AA ArmorKinetix distributed servo motor is designed for machine motion applications that use distributed drive architecture and integrated networked safety. This configuration combines a 24 A peak rating with a 400V class design, making it suitable for compact servo axis installations where motor-mounted drive technology can help reduce cabinet wiring and simplify machine layouts.
Lifecycle Status: Active
- Product family: ArmorKinetix distributed servo motor
- Catalog number: 2198-DSM024-ERS2-B1003F-PK14AA
- Peak current: 24 A
- Safety option: ERS2
- Voltage class: 400V class
- Frame size: 100 mm bolt circle
- Stack length: 3 stacks
- Base speed: 4500 RPM
- Feedback: Multi-turn DSL EK 35 mm
- Shaft extension: Smooth shaft
- Connector: SpeedTec right-angle DIN
- Brake: 24V DC holding brake
- Mounting: IEC metric mounting flange
- Special feature: Standard seal
- Country of production: US
- Approximate weight: 8.36 kg
- Approximate dimensions: 53.8 cm length, 20.0 cm width, 23.8 cm height
This ArmorKinetix servo motor is suited to distributed motion control systems where compact installation, digital feedback integration, and coordinated machine control are important. The combination of multi-turn DSL feedback, SpeedTec connectivity, and holding brake support can be useful in packaging, material handling, and automated machinery requiring controlled servo positioning and reliable axis retention.
