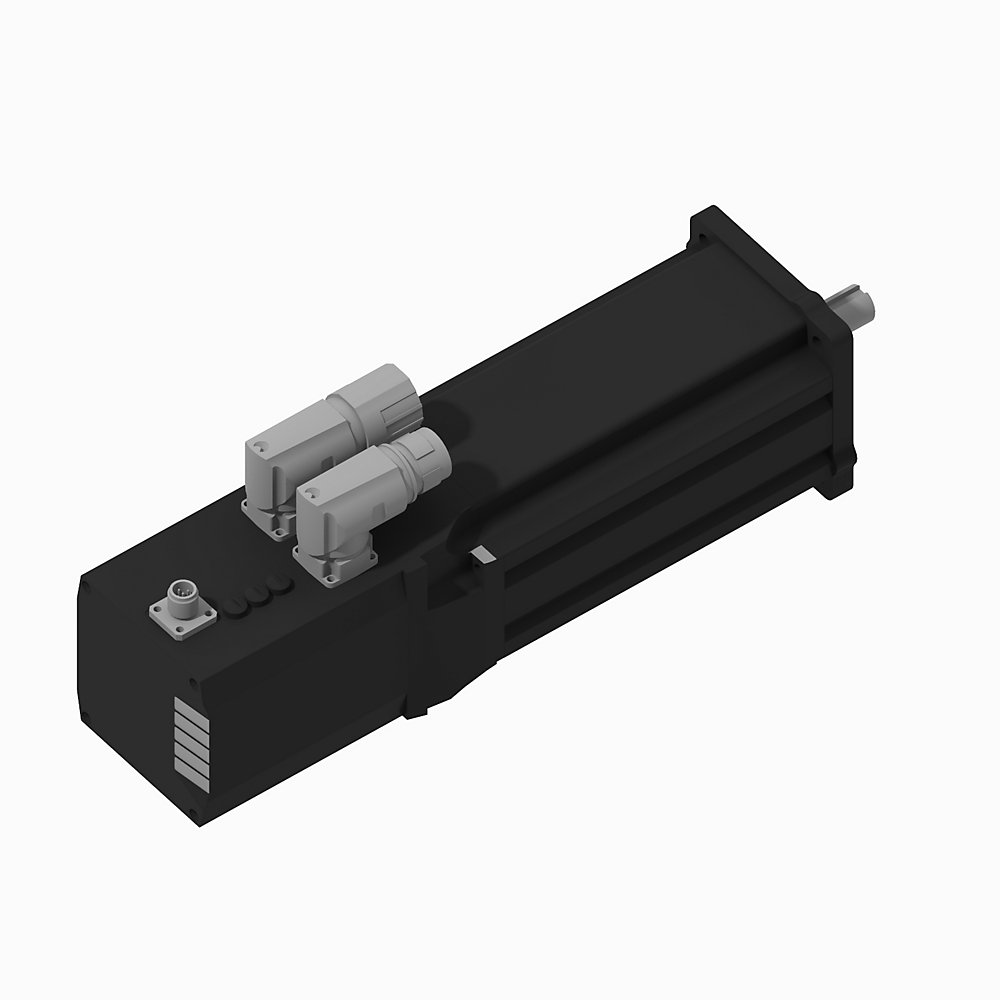

Allen-Bradley 2198-DSM024-ERS2-B1003F-PJ14AS ArmorKinetix Servo Motor
ArmorKinetix distributed servo motor, 24 Amp peak, 400 V class, 24 V DC holding brake, 100 mm bolt circle frame, 35 mm shaft seal fitted
Lifecycle Status: Active
The Allen-Bradley 2198-DSM024-ERS2-B1003F-PJ14AS ArmorKinetix distributed servo motor is designed for distributed motion architectures used with Kinetix 5700 drive systems and ArmorKinetix system installations. This servo motor variant combines integrated motor and distributed servo functionality for machine control applications that benefit from reduced cabinet wiring and near-motor deployment.
Lifecycle Status: Active
- Product family: ArmorKinetix distributed servo motor
- Peak current: 24 Amp peak
- Voltage class: 400 V class
- Control brake: 24 V DC holding brake
- Frame size: 100 mm bolt circle frame size
- Stack configuration: 3 stacks
- Feedback: Multi-turn DSL
- Motor constant designation: 4500
- Shaft / seal detail: 35 mm shaft, IP66 shaft seal fitted
- Connector style: SpeedTec right angle DIN
- Mounting: IEC metric mounting flange
This ArmorKinetix servo motor is suited to distributed machine control, conveyor sections, packaging equipment, and other industrial automation systems where compact motor-mounted motion components can simplify installation while maintaining integrated feedback and networked control architecture.
