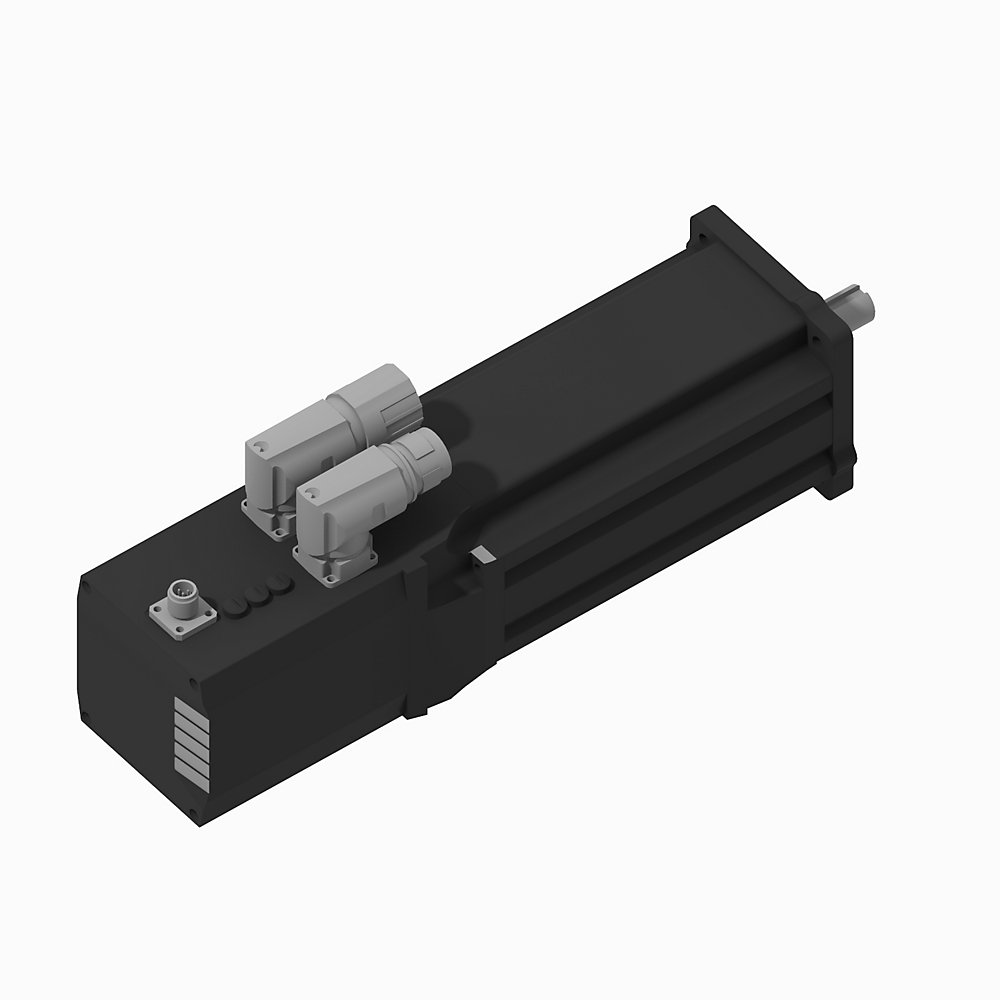

Allen-Bradley 2198-DSM024-ERS2-B1003F-CJ14AA ArmorKinetix Servo Motor
ArmorKinetix distributed servo motor, 24 A peak, standard safety, 400 V class, 100 mm bolt circle frame, 3 stacks, 4500 RPM, keyed shaft, right-angle DIN connector, no brake, IEC metric flange
Lifecycle Status: Unknown
Description
The Allen-Bradley 2198-DSM024-ERS2-B1003F-CJ14AA ArmorKinetix distributed servo motor is intended for on-machine motion applications in integrated EtherNet/IP architectures where compact machine design and distributed servo control are required.
Lifecycle Status: Unknown
- Product family: ArmorKinetix distributed servo motor
- Peak current: 24 A
- Safety level: Standard Safety
- Input voltage class: 400 V class
- Frame size: 100 mm bolt circle frame size
- Stack length: 3 stacks
- Base speed: 4500 RPM
- Feedback type: Single Turn DSL 35 mm
- Shaft extension: Keyed shaft extension
- Connector style: SpeedTec right-angle DIN
- Brake: No brake
- Mounting configuration: IEC metric mounting flange
This distributed servo motor configuration is suited to machine builders and integrators that need decentralized motion hardware for packaging, material handling, and other automated equipment using industrial Ethernet-based control topologies.
