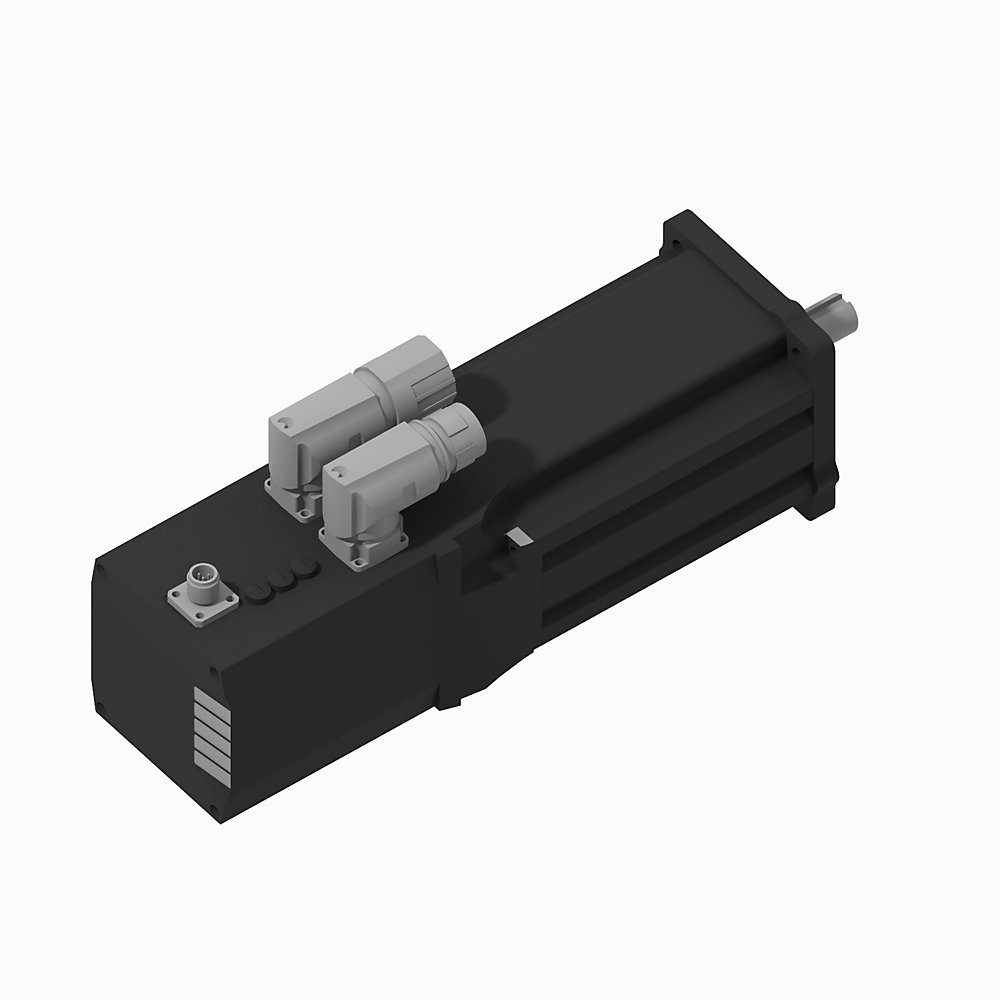

Allen-Bradley 2198-DSM024-ERS2-B1003F-CJ12AS ArmorKinetix Servo Drive
ArmorKinetix distributed servo drive, 24 A peak, 400 V class, 100 mm bolt circle frame, DSL 35 mm single-turn feedback, IP66 shaft seal fitted
Lifecycle Status: Active
The Allen-Bradley 2198-DSM024-ERS2-B1003F-CJ12AS ArmorKinetix distributed servo drive is designed for machine motion applications that benefit from decentralized servo architecture and on-machine installation. This unit combines servo drive functionality in an ArmorKinetix distributed format suited to compact machine layouts, cable reduction strategies, and integrated motion systems.
Lifecycle Status: Active
- Product family: ArmorKinetix DSM distributed servo drive
- Peak current: 24 A
- Voltage class: 400 V
- Frame size: 100 mm bolt circle
- Feedback: Single-turn DSL, 35 mm
- Configuration: Standard safety
- Stack count: 3 stacks
- Rated speed designation: 4500
- Connector style: SpeedTec right-angle DIN
- Brake: No brake
- Mounting: IEC metric mounting flange
- Environmental feature: IP66 shaft seal fitted
This ArmorKinetix distributed servo drive is suitable for servo motion control in packaging, material handling, and automated machinery where distributed installation can help simplify cabinet design and support modular machine sections. The integrated form factor supports machine builders and maintenance teams looking for compact motion hardware with industrial networked machine control architecture.
