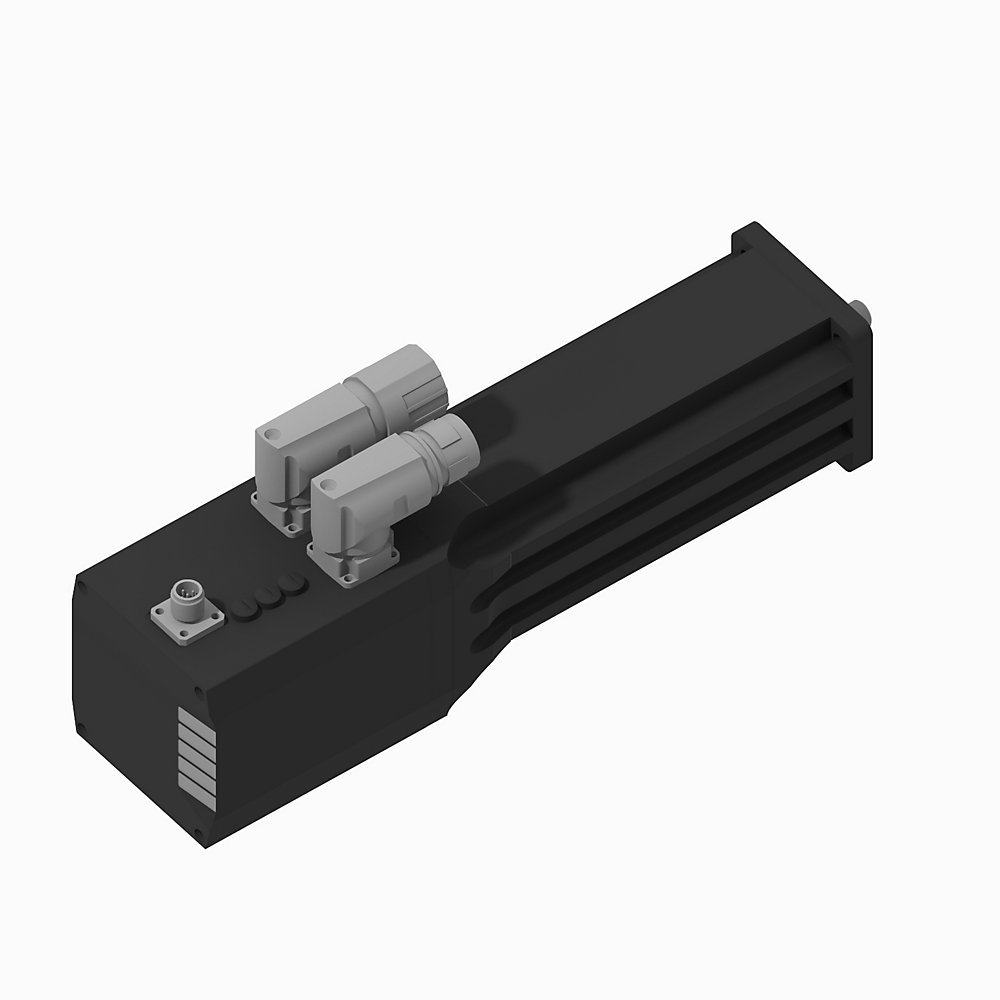

Allen-Bradley 2198-DSM024-ERS2-B0753M-PK14AA ArmorKinetix Servo Drive
ArmorKinetix distributed servo drive, 24 amp peak, 75 mm bolt circle frame size, 3 stacks, 6000 RPM rated speed, keyless shaft, SpeedTec right angle DIN, 24V DC holding brake, multi-turn 18 bit feedback
Lifecycle Status: Active
The Allen-Bradley 2198-DSM024-ERS2-B0753M-PK14AA ArmorKinetix distributed servo drive is designed for distributed motion architectures that combine servo drive electronics and motor mechanics in a compact machine-mounted package. This configuration is suited to machine control applications where reduced cabinet space, simplified motor cabling, and integrated motion performance are important.
Lifecycle Status: Active
- Product family: ArmorKinetix distributed servo drive
- Catalog number: 2198-DSM024-ERS2-B0753M-PK14AA
- Peak current: 24 amp
- Frame size: 75 mm bolt circle
- Magnet stacks: 3
- Rated speed: 6000 RPM
- Shaft style: Keyless shaft
- Connector style: SpeedTec right angle DIN
- Brake: 24V DC holding brake
- Feedback: Multi-turn 18 bit
- Mounting flange: IEC metric mounting flange
- Seal option: Standard seal
This ArmorKinetix unit fits machine-level motion control systems that use distributed servo technology for packaging, material handling, and other automated equipment requiring compact installation and integrated servo axis control. The machine-mounted format can support cleaner panel layouts while maintaining a structured motion control architecture.
