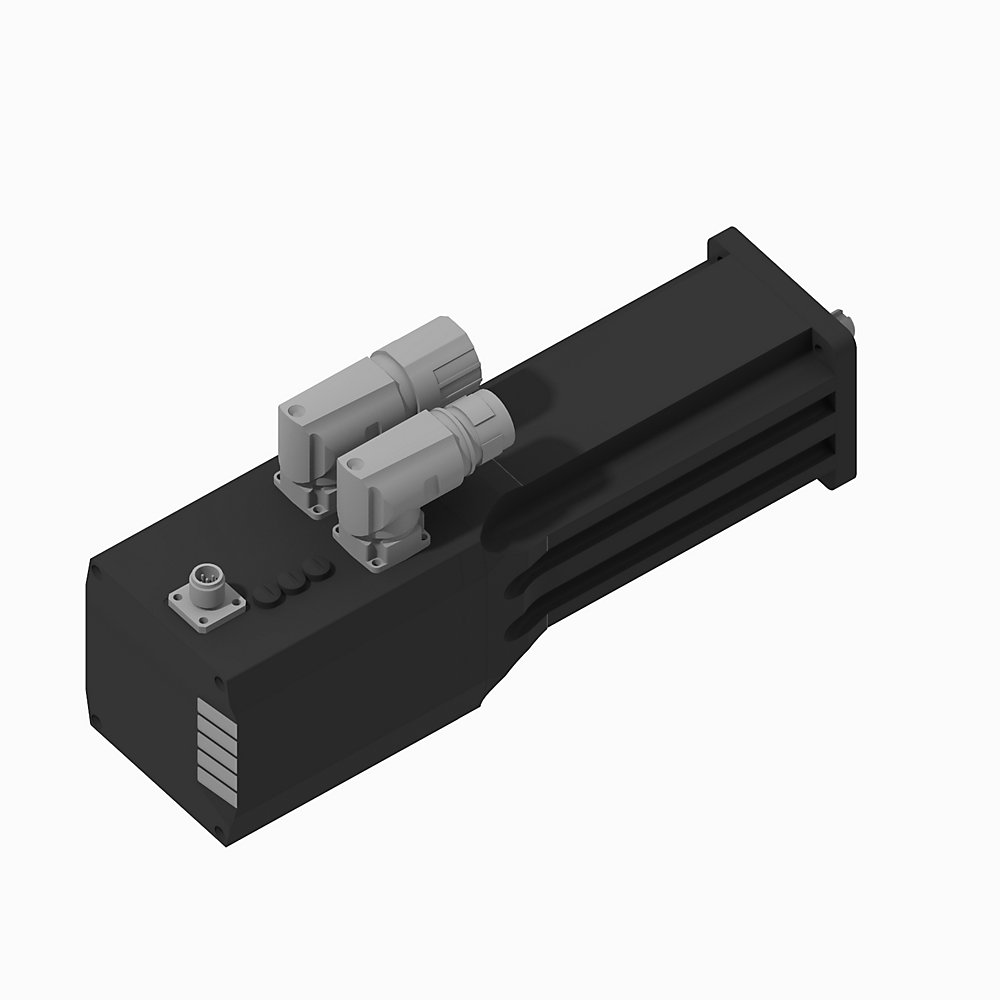

Allen-Bradley 2198-DSM024-ERS2-B0753F-CJ12AA ArmorKinetix Servo Motor
ArmorKinetix distributed servo motor, 24A peak, Standard Safety, 400V class, 75 mm bolt circle frame, 3 stacks, 4500 RPM, Single Turn DSL 35 mm, keyed shaft, SpeedTec right-angle DIN, no brake
Lifecycle Status: Active
The Allen-Bradley 2198-DSM024-ERS2-B0753F-CJ12AA ArmorKinetix distributed servo motor is designed for distributed motion architectures that combine servo motor performance with integrated machine-level connectivity for industrial automation systems.
Lifecycle Status: Active
- ArmorKinetix distributed servo motor
- 24 A peak size
- Standard Safety configuration
- 400V class
- 75 mm bolt circle frame size
- 3 stack motor length
- 4500 RPM base speed
- Single Turn DSL 35 mm feedback
- Keyed shaft extension
- SpeedTec right-angle DIN connector
- No brake
- IEC metric mounting flange
- Standard seal
- Approximate dimensions: 43.7 cm length, 20.0 cm width, 23.8 cm height
- Approximate weight: 5.66 kg
- UL Listed certification shown on product page
This ArmorKinetix servo motor is suited to machine control and motion applications where distributed installation can help simplify cabling and support modular equipment layouts. It can be applied in automated machinery requiring coordinated servo motion, compact machine sections, and industrial networked control architectures.
