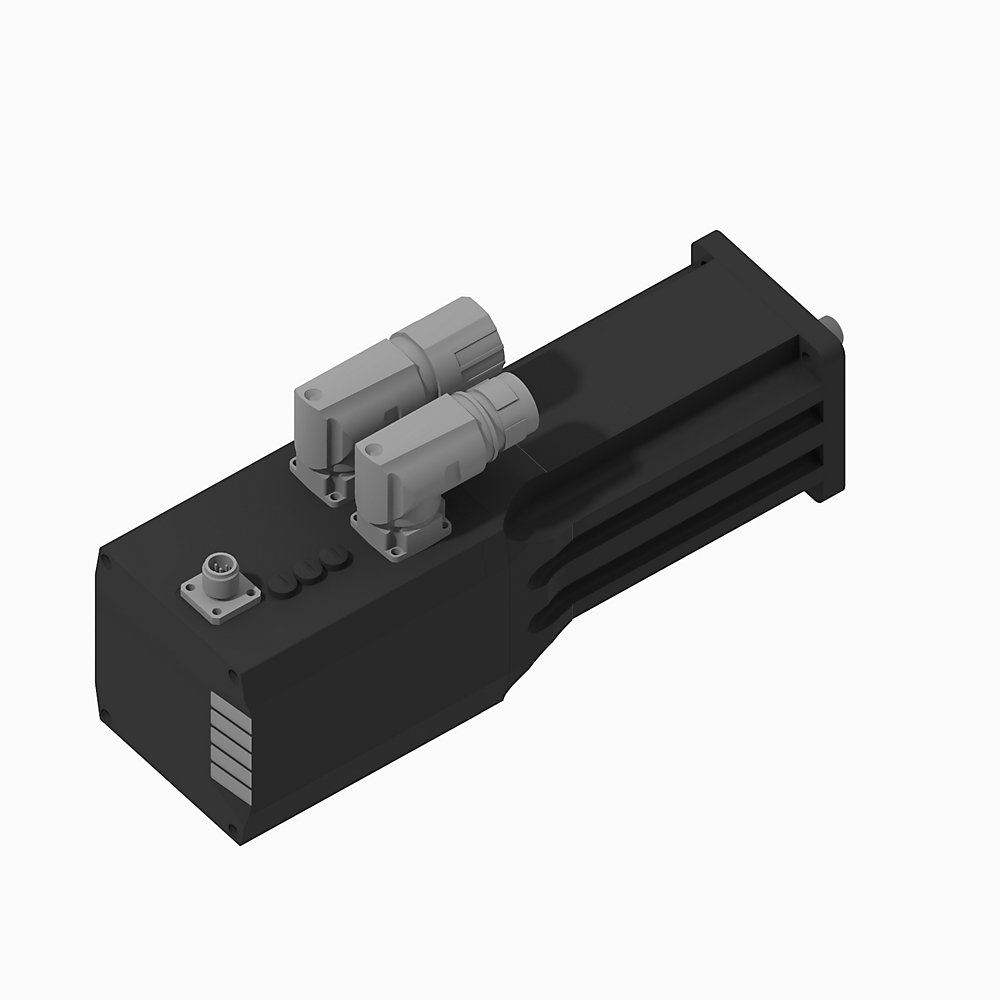

Allen-Bradley 2198-DSM016-ERS5-A0751E-WK14AA ArmorKinetix Servo Motor
ArmorKinetix distributed servo motor, 16 A peak, Advanced Safety, 200V class, 75 mm bolt circle frame, 1 stack, 3500 RPM, multi-turn DSL SIL2 35 mm, smooth shaft, SpeedTec right angle DIN, 24V DC holding brake, IEC metric flange, standard seal
Lifecycle Status: Active
The Allen-Bradley 2198-DSM016-ERS5-A0751E-WK14AA ArmorKinetix distributed servo motor is designed for machine motion applications that use integrated distributed servo architecture with advanced safety functionality. This configuration combines a 200V class motor platform with a 75 mm bolt circle frame, 1 stack construction, and 3500 RPM base speed for compact machine control installations.
Lifecycle Status: Active
- Product family: ArmorKinetix distributed servo motor
- Catalog number: 2198-DSM016-ERS5-A0751E-WK14AA
- Peak current: 16 A
- Safety level: Advanced Safety
- Input voltage class: 200V class
- Frame size: 75 mm bolt circle frame size
- Stack length: 1 stack
- Base speed: 3500 RPM
- Feedback type: Multi-turn DSL SIL2 35 mm
- Shaft extension: Smooth shaft extension
- Connector style: SpeedTec right angle DIN
- Brake: 24V DC holding brake
- Mounting configuration: IEC metric mounting flange
- Special feature: Standard seal
This ArmorKinetix servo motor is suited to distributed motion control systems where compact installation, integrated feedback, and machine-level servo performance are required. It can be applied in packaging, material handling, and automated machinery that benefits from distributed drive system layouts and streamlined motor connectivity.
