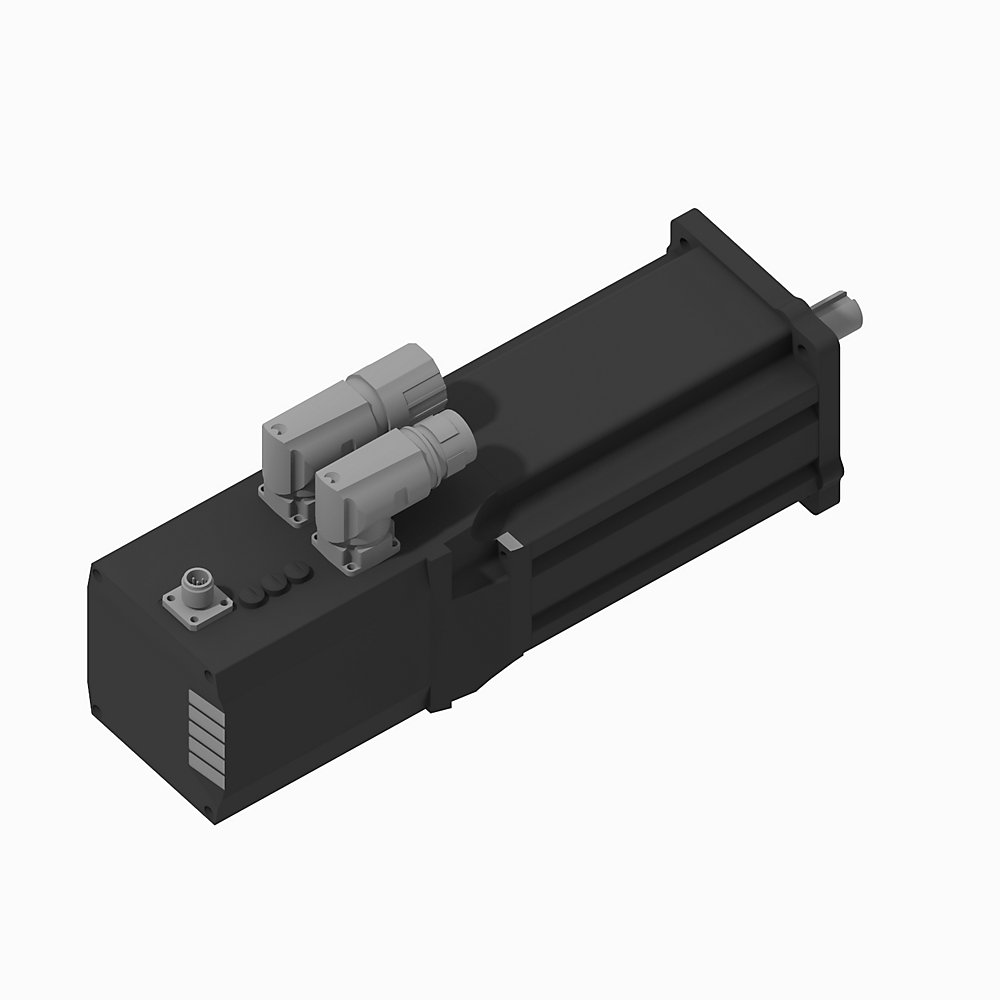

Allen-Bradley 2198-DSM016-ERS2-B1002M-PJ14AS ArmorKinetix Servo Drive
ArmorKinetix DSM servo drive, 16 A peak, 400 V class, 24 V DC holding brake, 100 mm bolt circle frame, 35 mm SpeedTec right-angle DIN, IP66 shaft seal
Lifecycle Status: Active
The Allen-Bradley 2198-DSM016-ERS2-B1002M-PJ14AS ArmorKinetix DSM servo drive is designed for distributed motion applications where machine builders need integrated servo performance in a machine-mounted architecture. This configuration combines ArmorKinetix DSM distributed servo technology with a 400 V class design, 16 A peak rating, and integrated connection features suited to compact machine control layouts.
Lifecycle Status: Active
- Product family: ArmorKinetix DSM distributed servo drive
- Peak current: 16 A
- Voltage class: 400 V
- Holding brake: 24 V DC
- Frame size: 100 mm bolt circle
- Connection size: 35 mm
- Connector style: SpeedTec right-angle DIN
- Configuration: 2 stacks
- Feedback / motor data reference: Multi-turn DSL EK
- Mounting flange: IEC metric mounting flange
- Shaft sealing: IP66 shaft seal fitted
- Certifications shown on product page: UL Listed, Korean KC, CE, Australian RCM, ODVA, Safety
This ArmorKinetix distributed servo drive is suited to machine control systems that benefit from decentralized motion hardware, reduced cabinet wiring, and direct integration into industrial automation architectures. It can be applied in packaging, material handling, and other servo-driven equipment where distributed installation and robust machine-mounted construction are important.
